This design consists of a chamber that keep the specially developed 10" Volt Bass Unit having a rear exit with indeterminate length horn loading. This prevents any constriction of the bass that are usually contained in a restrictive box structure.

The M-45 also uses the very well established Satori AT60NC-4 Ribbon high frequency unit.

The bass performance is exceptional, as all of David's designs have shown over the years.

The accurate Bass performance creates the foundation of the music being played. The only drawback is that each reproductive part of the system needs to be isolated against spurious resonances, especially turntables used for vinyl recordings.

We have developed a special new baffle construction within the designs of our new range, which is using a material mainly used in high-end kitchen and office furniture.

This produces a very inert front baffle, usually the source of many resonant problems.

The M-45 is available with a number of veneer choices and some different choice colours for the Corian baffles.

Technically the speaker uses an 8 Ohm Volt Bass unit along with a Scanspeak 5" Bass/Midrange unit and is paired with a Satori Ribbon high frequency unit. We estimate that the speaker will handle a comfortable 80 watts of RMS power. We have never driven the Bass.

Size of Cabinet:

Height: 660mm

Depth: 390mm

Width: 345mm

Weight: approx.. 30kg Per Unit

Power Rating: 100 Watts

Impedence: 8 Ω

Available Frequency: 30 - 20,000 Hz

Prices Start from £3999 ( Product Launch Offer )

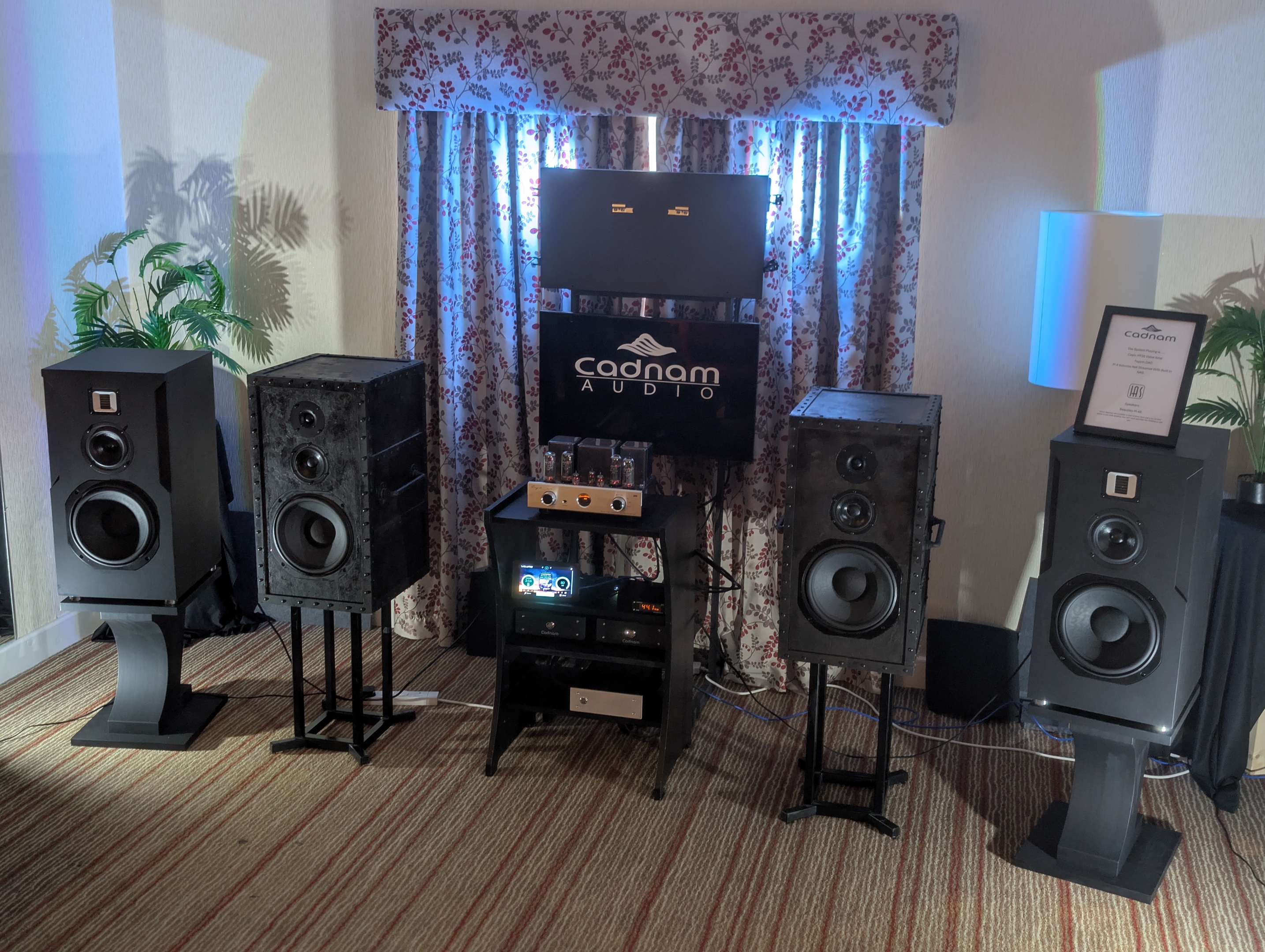

Stands Picture on outer Pair £399 Finished same colour as Speaker Cabinets
